How to troubleshoot DNS server failures

Solution provider takeaway: Network solution providers need to know how DNS works and how to perform basic troubleshooting of DNS server failures, as explained in this tip.

DNS server failures are some of the most serious types of failures that can occur on a Windows network. If DNS is not working, then the Active Directory will not work either. Furthermore, users may not be able to access resources on the local network or the Internet. If your clients experience these types of problems, they will most likely call on you for help. As a network solution provider, you need to be familiar with how DNS works and how to perform basic troubleshooting. In this article, I show you some simple techniques for troubleshooting a DNS server failure.

Is the DNS server really to blame?

I have fixed a number of DNS problems over the years and very few have actually been related to failures on the DNS server. More often than not, the problem existed on the machine that was trying to perform the DNS query, rather than on the DNS server itself. Fortunately, there are some quick tests that you can use to narrow down the problem.

First, confirm the DNS server's IP address and that the DNS server service is running. Once you verify these two things, you can get started with the process of troubleshooting the DNS server failure.

I like to start out by making sure that the client machine is pointed to the correct DNS server. The easiest way to do this is to open a command prompt window and enter the following command:

IPCONFIG /ALL

This command will list the computer's TCP/IP configuration. You can get the same information through the computer's network configuration screens, but I prefer to use this method because I have run into a couple of instances where the information that Windows showed di...

Digg This!     StumbleUpon     Del.icio.us

RELATED CONTENT Network Management How to deploy NetFlow v5 and v9 probes and analyzers VARs: How to become a managed services provider Offering managed VoIP services: Opportunities for MSPs and VARs WAN management services for UC: Opportunities for MSPs and VARs Channel Explained: Data center design for networking VARs Networking Channel News Roundup, Jan. 5-12 Top 10 networking tips for solution providers of 2008 Energy-saving tips for business networks CCNA Security - Defending the perimeter Cisco CCNA Security certification Q&A Network Management Services Managed wireless LAN network services can be a channel partner moneymaker Avaya launches new managed services and channel programs for partners How to deploy NetFlow v5 and v9 probes and analyzers Bandwidth management services Offering network analysis in virtualized environments Energy-saving tips for business networks How to resolve DNS server failures Maximize server virtualization ROI with network I/O virtualization DNS troubleshooting and analysis What are you trying to accomplish with network performance management?

RELATED RESOURCES 2020software.com, trial software downloads for accounting software, ERP software, CRM software and business software systems Search Bitpipe.com for the latest white papers and business webcasts Whatis.com, the online computer dictionary

d not match the configuration that Windows was actually using.

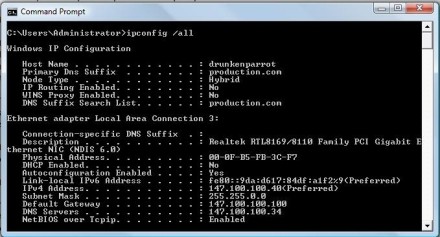

Upon displaying the machine's TCP/IP configuration, verify that the computer is pointed to the correct DNS server. For example, if you look at Figure A, you can see that my computer is pointed to a DNS server with an IP address of 147.100.100.34.

Verify that the machine's TCP/IP is configured to use the correct DNS server.

Assuming that the configuration is correct, the next thing I recommend doing is pinging the DNS server. This will verify that the client's machine is actually able to communicate with the DNS server. Keep in mind, though, that if the DNS server's firewall is configured to block ICMP traffic then the ping will not be successful.

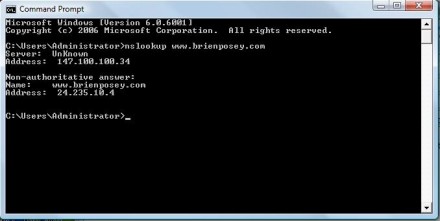

Once you have verified that the client can communicate with the DNS server, it's time to see if the DNS server is able to resolve host names. The easiest way to do this is to test the IP address of a familiar host name. For example, I know that my website uses the IP address 24.235.10.4. Therefore, if I run the NSLOOKUP command against www.brienposey.com, my DNS server should resolve www.brienposey.com to 24.235.10.4, as shown in Figure B.

NSLOOKUP verified the IP address of my website.

One more important thing to notice in Figure B is that Windows also verifies the IP address of the DNS server that was used to resolve the domain name. This IP address should match the one that is shown in Figure A.

What happens if the NSLOOKUP command returns an incorrect IP address for the target domain? Well, there are a couple of things that could have happened. One possibility is that the domain's IP address has changed, but the change has not yet been replicated to the DNS server. Another possibility is that malware has modified the contents of the DNS cache. Once Windows has resolved a domain name to an IP address, the name resolution is cached and kept on hand for a while so that Windows does not have to repeat the query each time the domain name needs to be used. If there is an invalid entry in the cache, then Windows will not be able to access the domain correctly.

Fortunately, it is easy to flush the DNS cache. To do so, just enter the IPCONFIG command followed by the /FLUSHDNS switch. If you are running Windows Vista, then this operation will require elevated privileges. You can get these privileges by right-clicking on the Command Prompt menu option and choosing Run As Administrator from the resulting shortcut menu.

Once you flush the DNS cache, try running NSLOOKUP once again. If the host name is still incorrect, then there are a couple different possibilities. For example, the DNS server may have lost connectivity to a root-level server. Another possibility is that there is an incorrect entry in the LMHOSTS file or in the Windows registry. I show you how to deal with these types of issues in part 2 of this series.

About the author
Brien M. Posey, MCSE, is a Microsoft Most Valuable Professional for his work with Windows 2000 Server and IIS. Brien has served as the CIO for a nationwide chain of hospitals and was once in charge of IT security for Fort Knox. As a freelance technical writer he has written for Microsoft, TechTarget, CNET, ZDNet, MSD2D, Relevant Technologies and other technology companies.
